How to Install 53mm Heavy-Duty Drawer Slides: Clearance, Alignment and Screw Guide
A practical guide to installing 12-inch 53mm heavy-duty drawer slides with correct clearance, parallel alignment, full extension and M5 screws.
Correct installation is essential for smooth travel, balanced loading and reliable operation. This guide explains the basic installation requirements for a 12-inch (300mm) 53mm three-fold heavy-duty drawer slide.

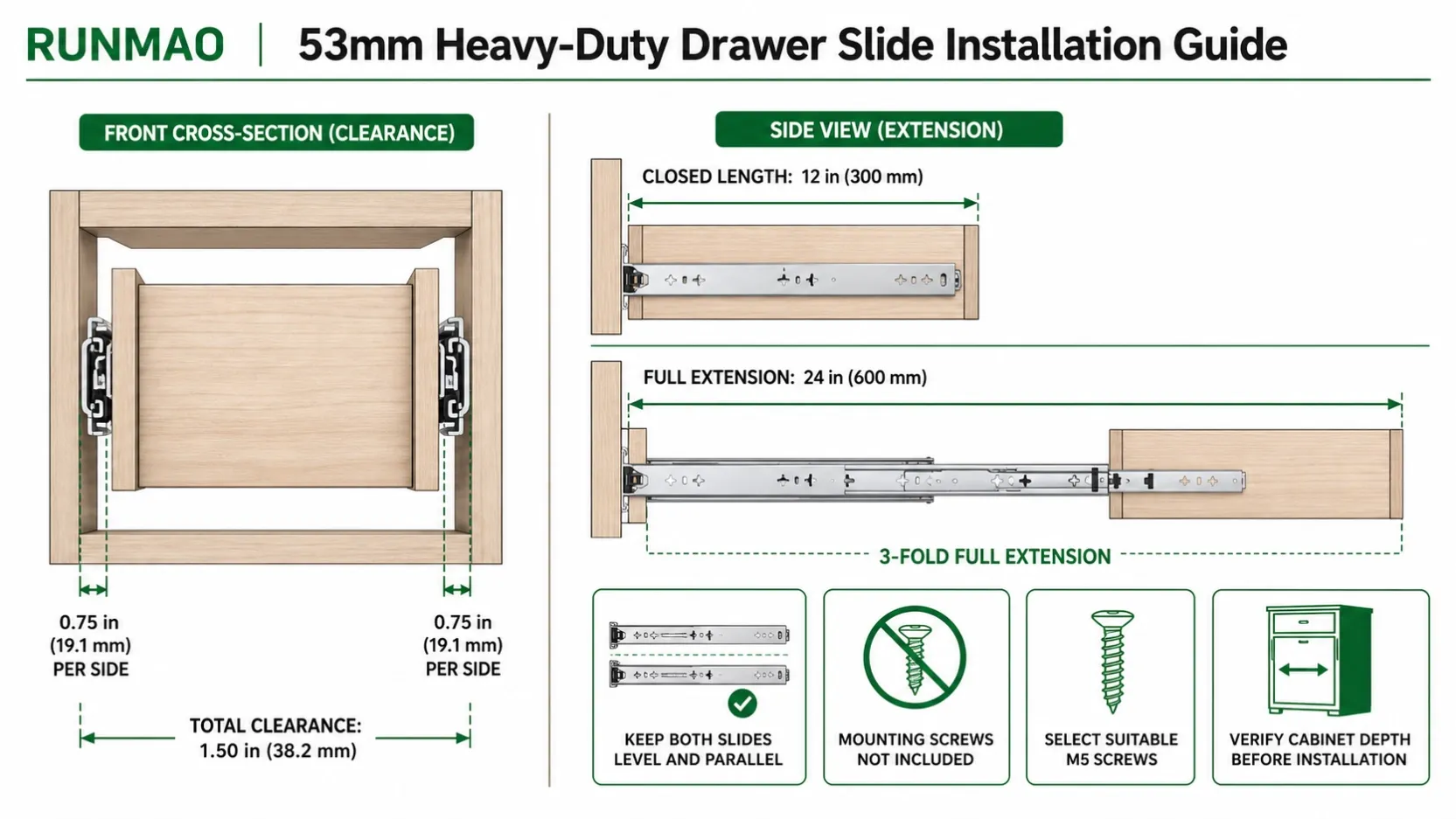

Key Specifications
Profile width: 2.08 in (53mm)
Closed length: 12 in (300mm)
Fully extended length: approximately 24 in (600mm)
Installation clearance: 0.75 in (19.1mm) per side
Total drawer-to-cabinet clearance: 1.50 in (38.2mm)
Extension type: three-fold full extension
Recommended mounting hardware: suitable M5 screws selected for the cabinet material and installation conditions
1. Check the Cabinet Depth
Before installation, confirm that the cabinet has enough internal depth for the 12-inch slide, fasteners and rear clearance. Depending on cabinet construction, an internal depth of approximately 12.5-15 inches may be suitable. Always measure the actual installation space before drilling.
The slide must not interfere with the rear panel, wiring, brackets or other components when fully closed.
2. Allow 0.75 Inch Clearance on Each Side
A pair of slides requires 0.75 in (19.1mm) clearance on the left and 0.75 in (19.1mm) on the right, giving a total clearance of 1.50 in (38.2mm).
Use this basic calculation:
Internal cabinet width - external drawer width = 1.50 in (38.2mm)
Check the actual slide thickness and production tolerance before finalizing the drawer width.
3. Keep Both Slides Level and Parallel
Install the cabinet-side members at the same height on the left and right cabinet walls. The two slides must remain horizontal, parallel and aligned from front to rear.
The drawer-side members must also be mounted at the same height and parallel to the cabinet-side members. Misalignment may cause binding, uneven movement, noise or reduced service life.
Recommended procedure:
1. Mark a horizontal reference line on both cabinet walls.
2. Position the left and right slides at the same setback from the cabinet front.
3. Install the screws loosely.
4. Insert the drawer and test the movement.
5. Adjust the alignment if necessary, then tighten all screws evenly.
4. Understand the Three-Fold Full Extension
The three-member telescopic design allows the drawer to extend to approximately twice the closed slide length. A 12-inch slide reaches an overall extended length of approximately 24 inches, allowing easier access to items stored at the back of the drawer.
Typical applications include industrial drawers, tool cabinets, mechanical cabinets, RV and vehicle storage, trucks, vending machines, safety drawers, exhibition drawers and heavy-duty truck storage.
5. Select Suitable Mounting Screws
Mounting screws are not included. Select suitable M5 screws according to the slide mounting holes, cabinet material, drawer material, panel thickness and expected load.
The screw head must sit correctly against the slide without interfering with the moving members or ball-bearing retainer. Avoid screws that are too long, too short or unable to provide sufficient holding strength.
Installation Checklist
Confirm the slide length and cabinet depth.
Allow 0.75 in clearance on each side.
Keep the two cabinet-side slides level and parallel.
Keep the drawer-side and cabinet-side members horizontally aligned.
Use suitable M5 mounting screws.
Tighten screws evenly after alignment.
Open and close the drawer several times before loading.
Confirm that the moving load is evenly distributed.
